TEST SHOT FOR |
|||
| (There are 5 Images in this series. Scroll down to view them in sequence from camera original to finished version.) | |||
| Lighting
Demo: 2/26/08. The subject is a A pair
of old harmonicas to demonstrate lighting of highly reflective objects.

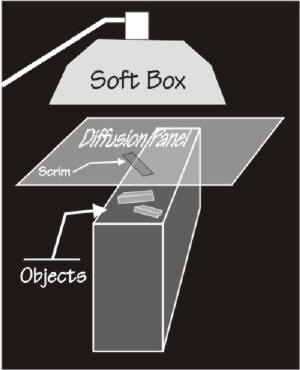

Backdrop is black velvet. The shot was taken with a Canon 5D using an 85mm F1.8 EF lens at F20 with Norman Studio Strobes as the lighting. One softbox through a diffusion light panel was used 1. This is the original shot as it came from the camera plus minor levels and curves adjustments
|
|
||
| 2. For this exposure a scrim made of folded plastic screening was laid on the diffusion panel to create the dark area on the plate of the top harmonica. |
 |
||
| 3. As an experiment, the scrim roll was widened and made thinner to cover more of the plate and make the dark area a little lighter. |
 |
||
| 4. An orange gel was added to the scrim roll to show the effect of adding color to the shot. |
 |
||
| 5.
Here is a detail of how the light brings out the
engraving on the nickle silver cover plates. We ran out of time but the next steps would have been to: a. Add some color to the bottom harmonica, and, |
 |
||
